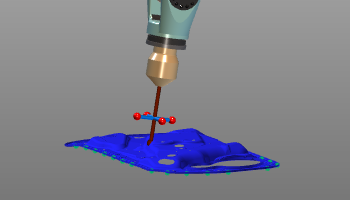

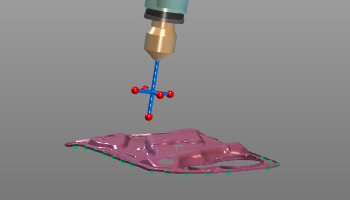

The Collision groups mode is the mode for defining the groups and content for collision analysis while running a (interactive) kinematic simulation.
|
|
|
|
Before being able to run a collision analysis it has to be defined which geometrical objects are checked against each other. The geometry is added to collision groups.
|
|
When picking a geometrical object or objects, a dedicated pie menu can be called to define these collision groups.
|
|

|

|
Activate the Manipulator
|

|
New group
|

|
Add to an existing group
|

|
Remove from the group
(Replaces the Add command on selected and already assigned geometry)
|

|
Select an assembly
|
|

|
Edit the group name
|
|

|
Remove the whole group
|
|

|
Define a collision check
|
|
|
|
When all groups are intended to be analyzed against each other, the pie menu can be opened in the 3D view
|
|

|

|
Activate the Manipulator
|

|
Define all collision checks
|

|
Toggle the Show / Hide workspace
|

|
Change the Operation mode
|
|
|
|

|
In the Simulation settings the collision analysis can be defined in more detail.
|
|
