The Interactive simulation mode enables the user the interactive motion and positioning of a kinematic object in the 3D View.
|
|

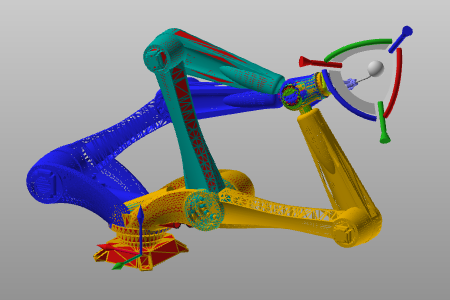

With the teach manipulator a kinematic resource can be simulated up to its limits.
|
|
|
|

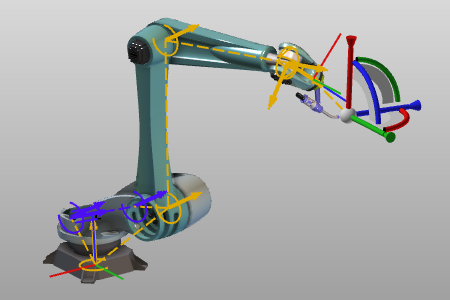

Picking a driven (synchronous) joint of the kinematic chain enables to move that joint up to its limits.
|
|

|
|

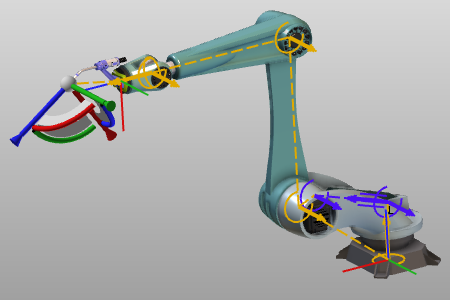

A double click on the center sphere of the manipulator will show all the possible configurations of the resource in that teach position.
|
|

|
|
|
In the 3D View the interactive Pie menu opens:
|
|

|

|
Activate the Manipulator
|

|
Reset the kinematic skeleton
|

|
Toggle the Show / Hide workspace
|

|
Add Start State
|

|
Change the Operation mode
|

|
Camera
|

|
Reset Start State
|
|
|
|
