Parameters in the command line

Base

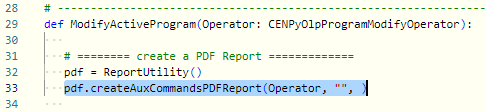

The command has two parameters :

•The operator CENPyOlpProgramModifyOperator

•A path-string, at least as an empty string.

A third parameter can be the set and order of the desired columns of the report.

Operator

The operator CENPyOlpProgramModifyOperator is already in the call of ModifyActiveProgram and will be just passed to the report command, to get all the necessary accesses to functions, methods and calls of the operator.

Path string

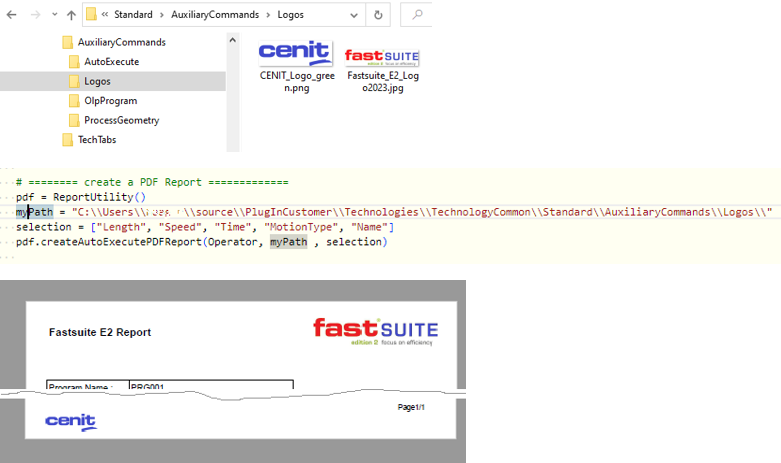

The report by default is using pictures and NLS files located in the cenpylib folder, coming with the E2 installation. If it is required to use customer related pictures, logos or translation, the path to the desired files can be set here.

  The backslashes between the folders must be doubled \\ and a double backslash after the last folder name …ds\\Logos\\

Report columns

By default, the report provides nine columns of information for the toolpath elements (TPE):

•Name; the name of the current TPE

•MotionType; the motion type of the current TPE (PTP, LIN, CIR

•Length; the calculated length in millimeter between last and current T

•Speed; the current set speed to perform the move

•Time; the calculated time of length and speed of the current move

•Costs; the calculated costs of length and costs per meter

•CollReach; if the TPE has a collision or is unreachable

•Events; the events performed on the current T

•Various; by default an empty column, but can be defined to add some other Information

Six of them by default are listed in the report:

•Name

•MotionType

•Length

•Speed

•Time

•Costs

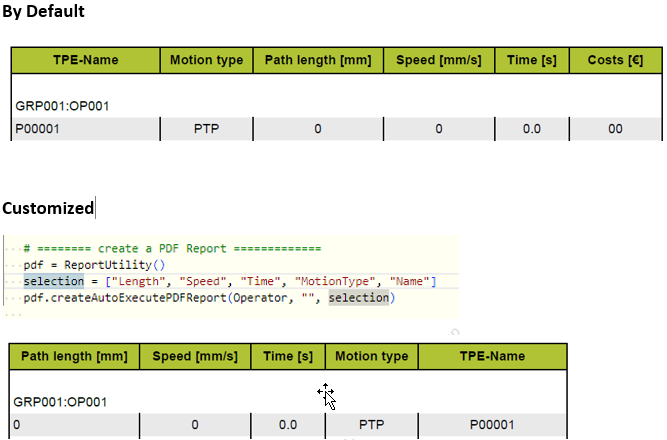

If it´s required to decrease or increase the number of columns, or to change the order of the columns, a Python-list with the desired items can be set and passed to the command.

Beware to use the exact same wording of the column names!

Each column has a pre-defined width which should generally fits.

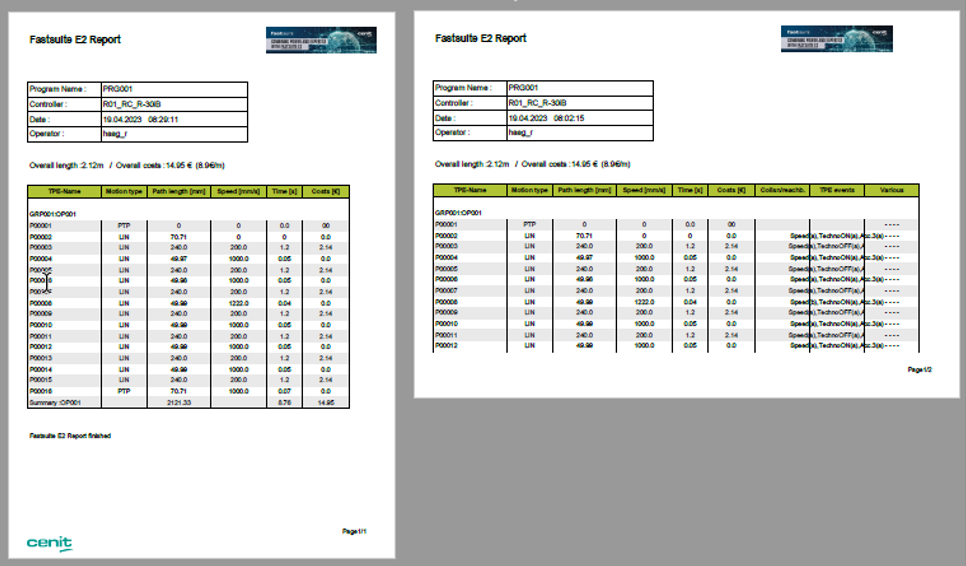

By default, the report is created in a portrait format. But If the sum of the displayed column width exceeds the sheet width, the format is changed to landscape automatically.
