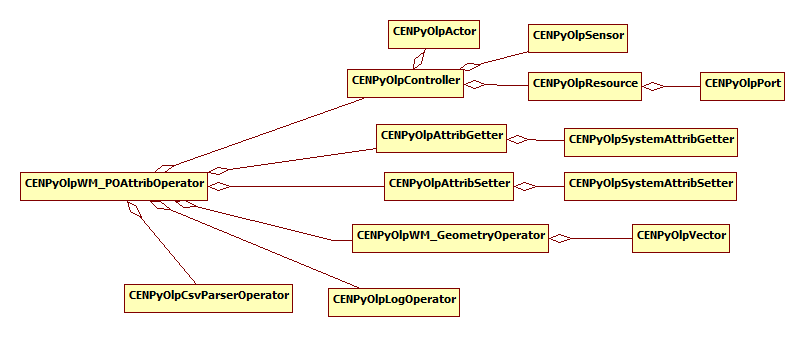

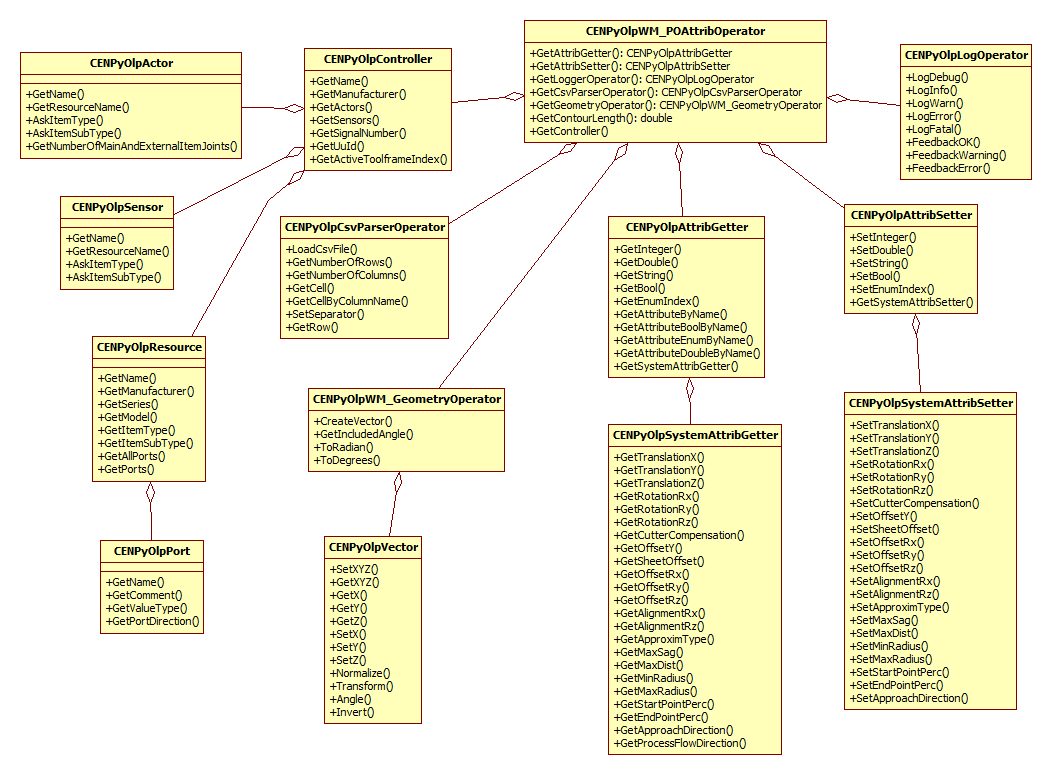

The callback PostProcessOperationAttributes(CENPyOlpWM_POAttribOperator) is called before an operation path computation.
It can be used to:
- get operation attribute values
- set operation attribute values
- access csv files
- output to the log
The callback is defined in the %WORKMETHOD_NAME%.py file that is located in the scripts folder of the plugin.
[Example]
def PostProcessOperationAttributes(poa):
# parser
csvParser = poa.GetCsvParserOperator()
# Get the path to the TechTabs folder and CSV file:
# Do not forget to add "import inspect, os" at the top of the file
# currentPythonFilePath = os.path.abspath(inspect.getfile(inspect.currentframe()))
# scriptsDirectoryPath = os.path.dirname(currentPythonFilePath)
# parentDirectoryPath = os.path.dirname(scriptsDirectoryPath)
# csvFilePath = str(parentDirectoryPath + "\\TechTabs\\Test.csv")
# or simply:
csvFilePath = str(os.path.dirname(os.path.dirname(os.path.abspath(inspect.getfile(inspect.currentframe())))) + "\\TechTabs\\Test.csv")
iRet = csvParser.LoadCsvFile(csvFilePath)
if iRet == 0:
logging.LogInfo("Successfully imported CSV file: " + str(csvFilePath))
csvParser.SetSeparator(",")
numberOfRows = csvParser.GetNumberOfRows()
numberOfColumns = csvParser.GetNumberOfColumns()
cell12 = csvParser.GetCell(1, 2)
cell12 = csvParser.GetCellByColumnName('B', 2)
row1 = csvParser.GetRow(1)
row2 = csvParser.GetRow(2)
geometryOperator = poa.GetGeometryOperator()
vector0 = geometryOperator.CreateVector(0, 1, 1)
vector1 = geometryOperator.CreateVector(0, 0, 1)
vectorN = geometryOperator.CreateVector(0, 0, 1)
angle = GetIncludedAngle = geometryOperator.GetIncludedAngle(vector0, vector1, vectorN, 0)
rad = geometryOperator.ToRadian(180)
deg180 = geometryOperator.ToDegrees(rad)
controller = poa.GetController();
toolIndex = controller.GetActiveToolframeIndex()
controllerName = controller.GetName()
logOperator.LogDebug("controllerName: " + controllerName)
logOperator.LogDebug("toolIndex: " + str(toolIndex))
pass
|
