Python scripting - Series callbacks

PostSeriesInitEvents

Previous  Chapter  Next

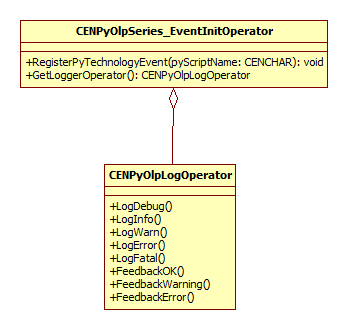

The callback PostSeriesInitEvents(CENPyOlpSeries_EventInitOperator) is called just after the kernel initializes the controller series specific events.



It can be used to:

- initialize controller series specific events

- output to the log



The callback is defined in the %SeriesName%.py file that is located in the scripts folder of the plugin.



PostSeriesInitEvents



def PostSeriesInitEvents(seriesEventInitOperator):

   seriesEventInitOperator.RegisterPyTechnologyEvent('GasEvent.py')  # Register event from the file 'GasEvent.py' (Listed below)

   seriesEventInitOperator.RegisterPyTechnologyEvent('GetSensorEvent.py')

   seriesEventInitOperator.RegisterPyTechnologyEvent('LaserEvent.py')

   seriesEventInitOperator.RegisterPyTechnologyEvent('SetActorEvent.py')

   seriesEventInitOperator.RegisterPyTechnologyEvent('ZAxisEvent.py')

   seriesEventInitOperator.RegisterPyTechnologyEvent('ChangeRecipeEvent.py')



[Example]

from centypes import *

GAS_TYPE = "GasType"

GAS_TYPE_LIST = ["Off", "StandBy", "OnPierce", "OnContour"]

GAS_OFFSET = "GasOffset"



def GetEventName():

   return "GasEvent"

def GetEventUuId():

   return "0B446ABF-6F16-4C28-A145-17B085959D09"

def GetIconName():

   return "GasEvent"

def GetExplodeCycle():

   return 0

def GetMultipleCreationIsPossible():

   return 1

def PostInitAttributes(eo):

   attribCreator = eo.GetAttribCreator()

   # Gas type

   attribCreator.AddEnum(GAS_TYPE, GAS_TYPE_LIST, GAS_TYPE_LIST[0], USER_ATTRIBUTE | PROCESS_ATTRIBUTE, GAS_TYPE)

   # Gas offset

   attribCreator.AddDouble(GAS_OFFSET, 0.99,0.0,1000.0, 1.0, USER_ATTRIBUTE | PROCESS_ATTRIBUTE, ATTRIB_LENGTH, GAS_OFFSET)

def PostProcessAttributes(CENPyOlpEvent_PEOperator):

   pass




PostSeriesInitEvents_Ex
