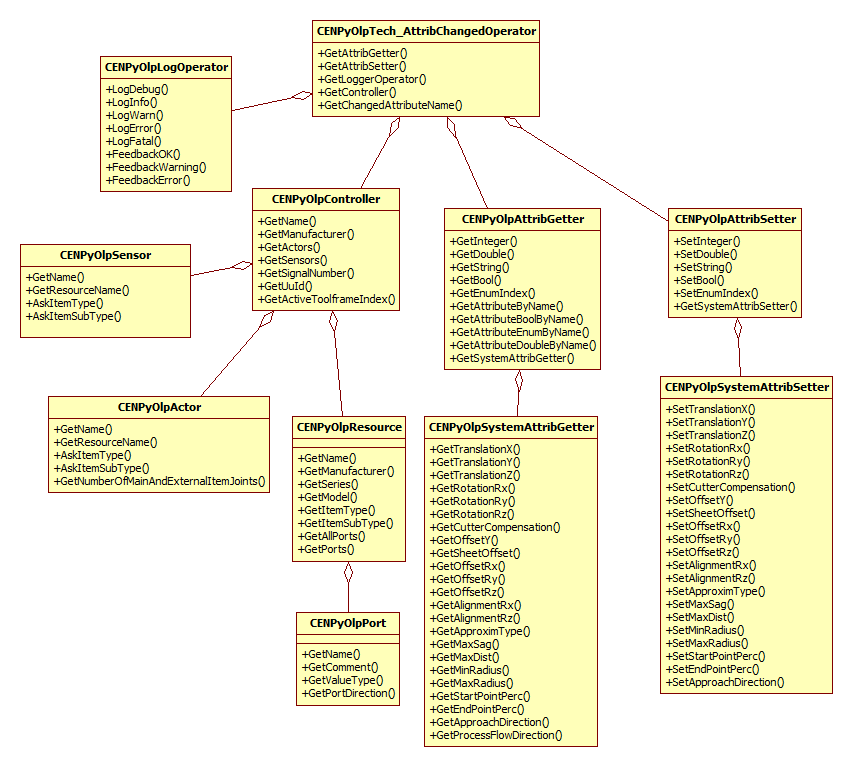

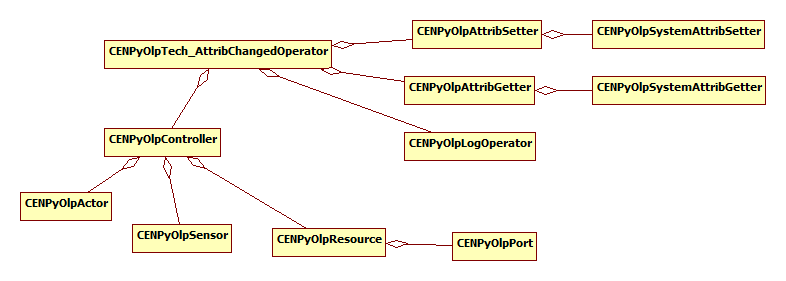

The callback PostTechOnAttribChanged(CENPyOlpTech_AttribChangedOperator) is called from the kernel when a technology attribute has been changed.
It can be used to:
- get attribute values
- set attribute values
- output to the log
- access OlpController
The callback is defined in the %TechnologyName%.py file that is located in the scripts folder of the plugin.
[Example]
def PostTechInitAttributes(Operator):
attribCreator = Operator.GetAttribCreator()
attribCreator.AddDouble(testDouble, 0.0, 0.0, 256.0, 0.1, USER_ATTRIBUTE | PROCESS_ATTRIBUTE | GLOBAL_ATTRIBUTE, ATTRIB_STANDARD, testDouble)
attribCreator.AddInteger(testInt, 0, 0, 256, USER_ATTRIBUTE | PROCESS_ATTRIBUTE | GLOBAL_ATTRIBUTE, testInt)
def PostTechOnAttribChanged(Operator):
changedAttribute = Operator.GetChangedAttribute()
changedAttributeName = changedAttribute.GetName()
if changedAttributeName == testDouble:
attribGetter = Operator.GetAttribGetter()
attribSetter = Operator.GetAttribSetter()
testDoubleValue = attribGetter.GetDouble(testDouble)
testDoubleValueRound = round(testDoubleValue)
attribSetter.SetInteger(testInt, testDoubleValueRound)
|
