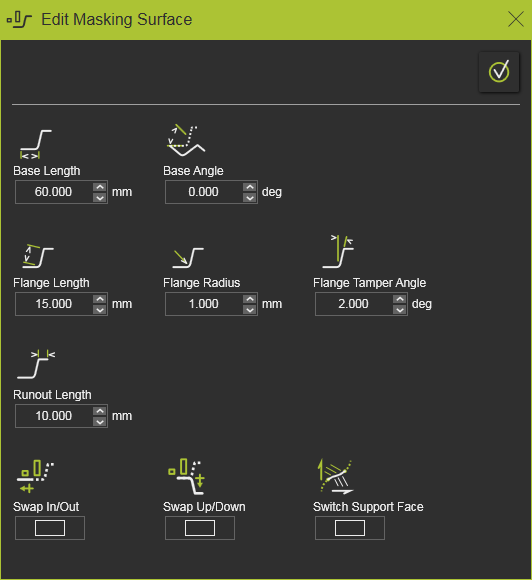

Base length
|
|
The tangential extrapolation from the selected edge of the support face.
|
|
Base angle
|
|
The rotation of the profile over its start point.
|
|
Flange length
|
|
The length, i.e. height of the vertical flange part of the profile.
|
|
Flange radius
|
|
The radius between the base and flange part of the profile.
|
|
Flange tamper angle
|
|
The angle of the flange part of the profile.
|
|
Run out length
|
|
The length of the horizontal run out of the profile.
|
|
|
|
|
|
Swap in / out
|
|
Change the direction of the tangential extrapolation to orient the profile.
|
|
Swap up / down
|
|
Change the vertical orientation of the profile.
|
|
Switch support face
|
|
When the edge is common for two non-tangential faces the support face, from where the tangential extrapolation is computed, can be switched.
|
Only is displayed when the option to switch exists.
|
