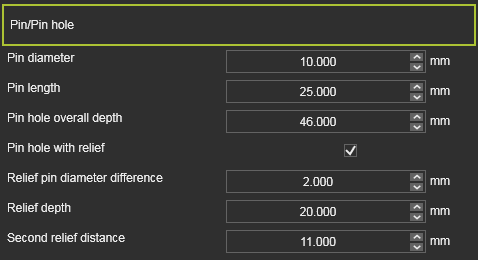

Pin diameter
|
|
The diameter of the interlocking pin or interlocking hole.
|
Value ≥ support plate thickness.
|
Pin length
|
|
The length of the interlocking pin.
|
Value > 0 mm.
|
Pin hole overall depth
|
|
The depth of the interlocking pin hole.
|
Value ≥ relief depth + second relief distance = 2 * support plate thickness.
|
Pin hole with relief
|
|
Switch to generate relief areas in the pin hole.
|
|
Relief pin diameter difference
|
|
Offset from the hole diameter.
|
Value > 0 mm.
|
Relief depth
|
|
The length of the upper relief in the pin hole.
|
|
Second relief distance
|
|
The length of the lower relief in the pin hole.
|
|
