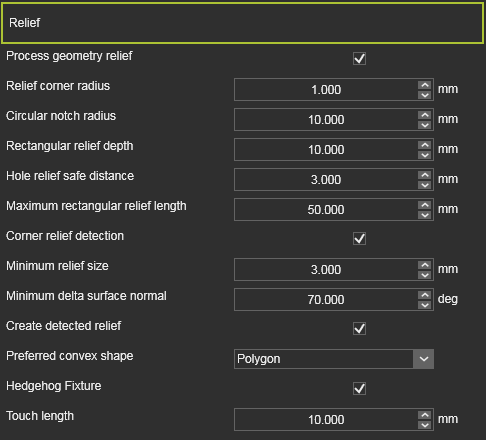

Process geometry relief
|
|
Switch to activate the relief computation at those workpiece boundaries, where process geometry has been defined.
|
|
Relief corner radius
|
|
The radius at the bottom of the relief.
|
Value ≥ 0 mm.
|
Circular notch radius
|
|
The radius at the top corner of the relief.
|
Value ≥ 0 mm.
|
Rectangular relief depth
|
|
The depth of the relief.
|
Value ≥ 3,0 mm.
|
Hole relief safe distance
|
|
The minimum distance between the workpiece edge and the relief edge.
|
Value ≥ 0 mm.
|
Maximum rectangular relief length
|
|
The rectangular length of the relief.
|
Value ≥ 5 * circular notch radius.
|
|
|
|
|
Corner relief detection
|
|
Switch to detect corners on the workpiece, where manual relief editing can be done.
|
|
Minimum relief size
|
|
The minimum length of the (theoretical) corner edges to enable the relief editing at that corner.
|
|
Minimum delta surface normal
|
|
The angle between the surface normals of the (theoretical) corner edges to enable the relief editing at that corner.
|
|
Create detected relief
|
|
The reliefs are automatically created on the detected corners.
|
|
Preferred convex shape
|
|
The shape with which the convex corner relief will be created.
|
|
|
|
|
|
Hedgehog fixture
|
|
Switch to generate the contact with the workpiece as a hedgehog shape.
|
To minimize accuracy differences between the virtual model and real workpiece, the hedgehog solution generates small contact areas.
|
Touch length
|
|
The contact length of the hedgehog parts.
|
|
Maximum relief length
|
|
The maximum length of the relief between the contact parts of the hedgehog.
|
|
