Stitch welding attributes

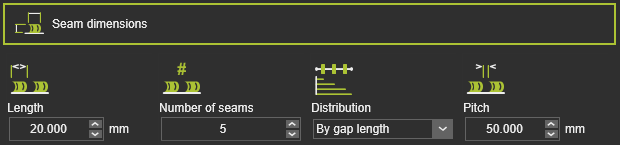

	The dimensions of the welding seam.
	Length	The length of the stitch seam.
	Number of seams	The number of stitch seams..
	Distribution	The distribution of stitches along the toolpath. By end position: The stitches are equally distributed along the toolpath length. A system minimum pitch determines the maximum number of stitch seams that fit in. If this minimum is not reached, the number of seams attribute will be applied. By gap length: The distribution is calculated by the pitch length. In combination with the seam length, It determines how many stitches can be applied on the toolpath. Therefore it may occur that the total seam is shorter than the manufacturing length.
	Pitch	The pitch length, i.e. the non-welding transition between two stitches.

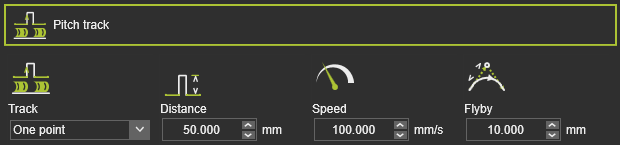

	The dimensions of the pitch, i.e. the path between the seams.
	Track	The track, i.e. motion profile of the pitch.
	Distance	The offset from the toolpath in case a track over additional positions has been defined.
	Speed	The velocity on the pitch track
	Flyby	The accuracy to reach the track positions.
