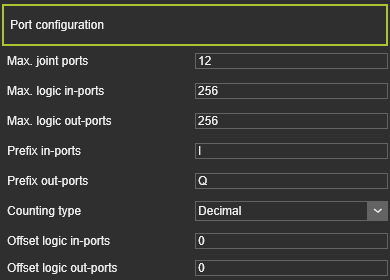

Max. joint ports
|
The maximum number of joints and other axes the controller can connect to.
|
|
Max. logic in-ports
|
The maximum number of logical ports at the input side of the controller.
|
|
Max. logic out-ports
|
The maximum number of logical ports at the output side of the controller.
|
|
Prefix in-ports
|
A prefix string for the input port names.
|
A vendor specific prefix is automatically inserted here, but can be edited.
|
Prefix out-ports
|
A prefix string for the output port names.
|
A vendor specific prefix is automatically inserted here, but can be edited.
|
Counting type
|
The number- and counting type of the ports.
|
The counting type is usually vendor specific. It can be
|
Offset logic in-ports
|
The offset value at counting start of the input ports.
|
The offset value must be of the same system as the counting type.
Example: Starting with a byte address I10 means an offset value of 80.
|
Offset logic out-ports
|
The offset value at counting start of the output ports.
|
The offset value must be of the same system as the counting type.
Example: Starting with a hexadecimal address QA means an offset value of 10.
|
