Purpose
|
|
Use the Resource Builder workbench to easily build the water jet cleaning device.
|
|

|
The geometry of the cleaner will be imported from an external file to build the tool resource. To be able to use it in a manufacturing project, it will be completed with the appropriate information to easily attach it to a robot and to simulate its operation.
|
|
|
|
Steps
|
|
1
|
Preparation
|
1.1
|

|

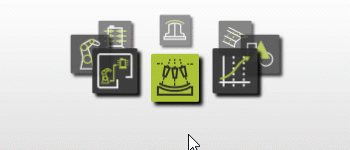

Switch to the Resource Builder workbench.
|
|
1.2
|

|
Create a new, empty document.
If another document is already open in the running session, this step has to be executed. If not, this step can be skipped.
|
1
|
Click on the File command in the upper document toolbar. A drop down menu opens.
|

|
|
2
|
Click on the New command.
|
|
|
3
|
If a document is already open, a message appears to decide to save that document, close it without saving or to cancel the execution of the New command.
|
|
|
|
|
|
|
2
|
Define the tool resource
|
|
2.1
|

|
Import the geometry from the file Water_Jet_Cleaner.step, which is located on the installation drive of this manual.
|
|
2.2
|

|
Create a new tool type resource for the cleaning device.
|
|
|
3
|
Build the cleaning device shape
|
3.1
|

|
Attach the imported geometry to the resource.
|
|
|
4
|
Define the cleaner device properties
|
4.1
|

|
Give an appropriate name to the device and set its other properties.
|
|
|
5
|
Create the specific frames
|
5.1
|

|
Filter the display to the technology frame. This frame will be used to define the location of the water jet spray cone.
|
5.2
|

|
Move this frame to the center of the tool nozzle.
|
5.3
|

|
Align the normal axis to the nozzle plate and move the frame 100mm inwards to its final position.
|
5.4
|

|
Create a tool center point frame at 140mm above the technology frame.
|
|
|
6
|
Save
|
6.1
|

|
Save the completed cleaning device.
|
|
|
|

|
Be sure to save your data frequently.
|
|
|
