What is automatic link path generation

Methodology

The function will generate more complex paths than a direct, straight connection between the operations.

The function works on existing toolpath structures, where it:

 Automatically creates link paths between operations if needed.

 Creates additional positions within the operation link path itself.

With the limitation, or boundary condition that:

 The retract positions of the first operation and the approach positions of the second operation need to be collision free, because the generator cannot modify these positions.

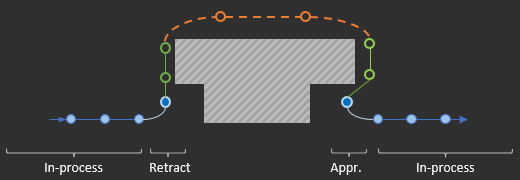

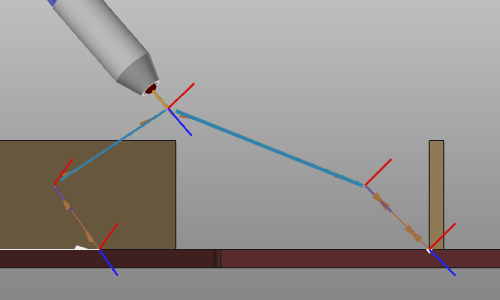

The picture below shows schematically the solution that will be generated.

Conditions

Technology system configurations

Each technology has different boundary conditions and requirements. Different robot or machine types, their configuration and turn values (when applicable) and the preferred motion (PTP, lin, ...) are of major importance to calculate the proper and expected link path. Taking this into account, there will be no general solution, based upon the workpiece geometry only. For each technology and manufacturing setup case, the system computes its own specific solution.

Dependency on linked operations

The operations themselves, that will be connected with a link path, can be modified or optimized with the various available programming functionality. It implies that the automatic link path generation may not change these operations while connecting. This means that:

 Positional coordinates, robot configuration and turn values of the last process point of the source operation and the first process point of the target operation will be retained.

 It may be therefore necessary to change the configuration and turn values on the link path itself (depending on motion type capabilities).

 The motion type of the target point will be changed when it is not matching the used link strategy. Currently only PTP motions are used for linking.

External axes

Values of the external axes will be included in the calculation of the link paths. The axis values at the source operation’s last process point and the target operation’s first process point will be maintained. Even if these are modal and not explicitly specified, the value applied there is being retained.

Manual modifications

Toolpath positions, generated with the functionality, are editable manually.

 Modified positions remain fixed and in that context will not be recomputed after update with the command.

 Additional positions can be inserted in the link path.

Toolpath evaluation costs

The automatic generation of the link path may create more complex motion paths between the connecting operations than that there was before, to achieve the main objective to run collision free. More complex motions inevitably lead to higher toolpath evaluation costs, which may lead again to incorrect validation of the program. And although the toolpath evaluation is done for the criteria collision, reachability, singularity and axis limit proximity, the link path is excluded from the costs determination, to avoid increasing costs indication.

Linking operation

In the tech tab Operation linking of the Active program dashboard, the parameters of the link path can be set.

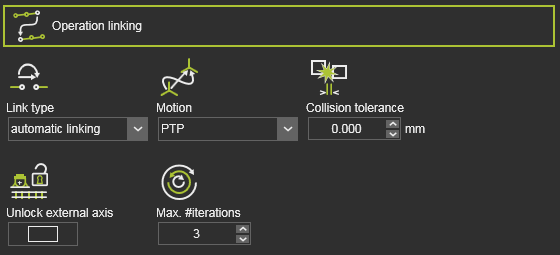

Operation linking

The attributes to control the computation of the link path.

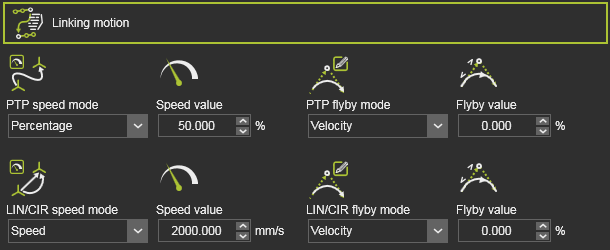

Linking motion

The attributes to control the motion along the link path can be found in this container.

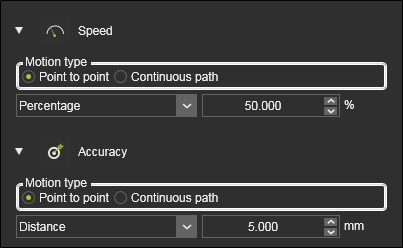

Events will be defined at the first position of the link path, but only if the attribute has been set here. Otherwise the motion inherits the values from the existing (global) definition.
