Preliminary note
|
|
For translating the report items there are translation files for each provided language (English, French, Chinese, Japanese, German). By default the language files are located in the installation path …\Lib\site-packages\cenpylib\languages.
In case of customization, the complete languages folder can be copied to a desired path, which is given with the create command. Otherwise the report takes the default files.
Customer related settings and translation can be done there. Only the desired language file needs to be edited.
Following listed settings are supported to adjust the report. If the item doesn't exist, the defaults form the script will be taken
|
|
|
Report name
|
|

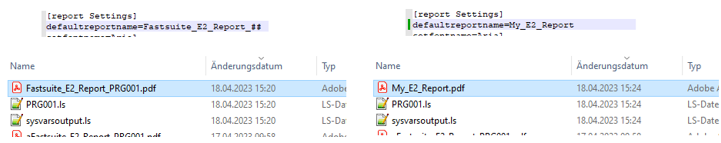

defaultreportname
|
|
This item is the default PDF file name, where two hashes ## (if given) will be replaced by the current program name.
|
|
|
Font
|
|

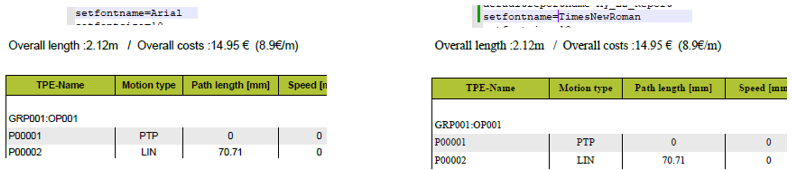

setfontname
|
|
This item sets the desired font type.
Please note: for Chinese and Japanese language only one set of characters exists. This setting is obsolete in this case.
|
|

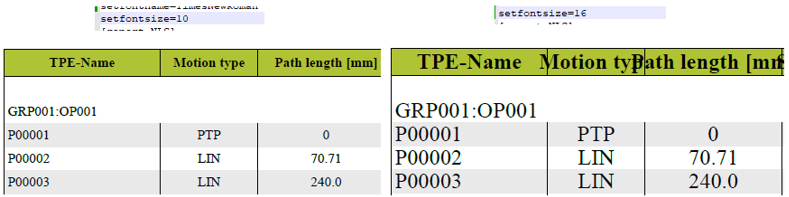

setfontsize
|
|
This item sets the desired font size.
The font size will be taken into account for Chinese and Japanese as well.
|
|

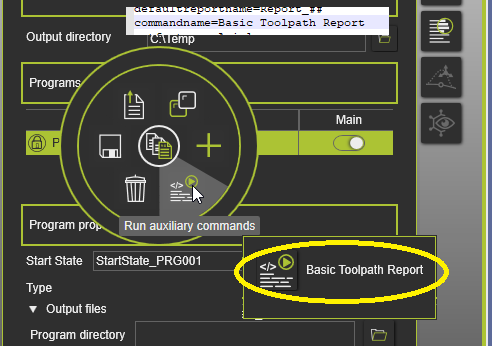

Command name
|
|
commandname
|
|
This item sets the desired command name in the Run auxiliary commands if the method GetCommandName is prepared accordingly (see below).
Example:
def GetCommandName():
nls = NLSUtility()
nls.defineNLS(project="report")
cmdname = nls.getNLS("commandname", "Report")
return cmdname
NLS is set to the report language files. It tries to get the item commandname. When the item does´t exist, apply the string "Report" as result.
|
|
|
Operation
|
|

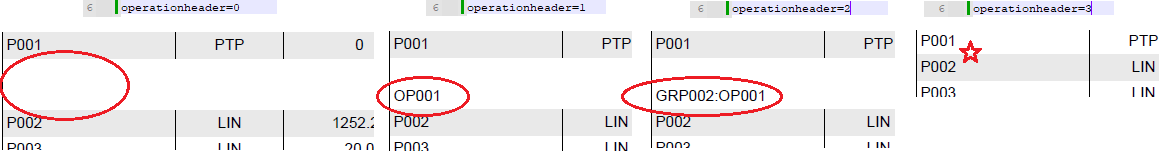

operationheader
|
|
Add a table row header before output an operation.
0 = none, but divider
1 = only OpName [default]
2 = Group&OpName
3 = absolute none
|
|

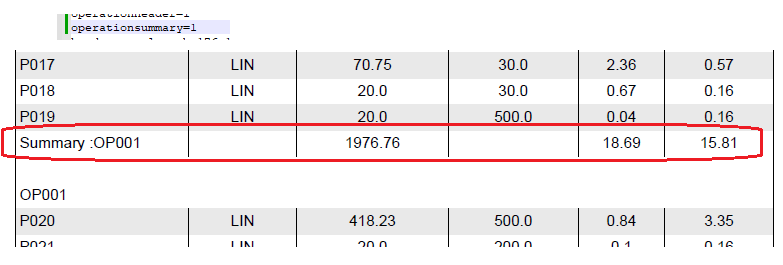

operationsummary
|
|
This item sets a summary row after each operation. Default is no summary (=0).
|
|
Logo image
|
|

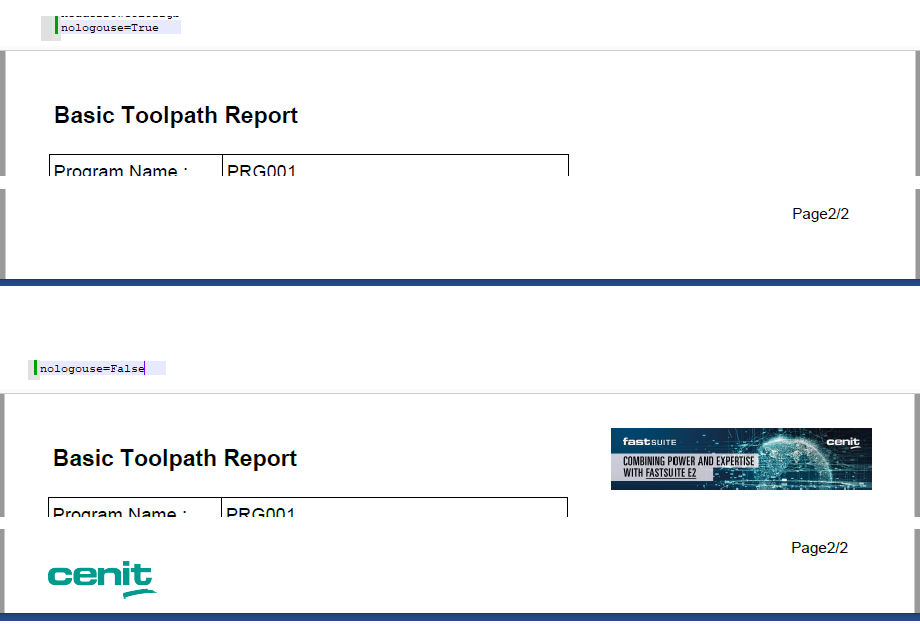

nologouse
|
|
This item sets if header and footer images shall be used.
The default is True, which means that no pictures will be used.
|
|
Table
|
|

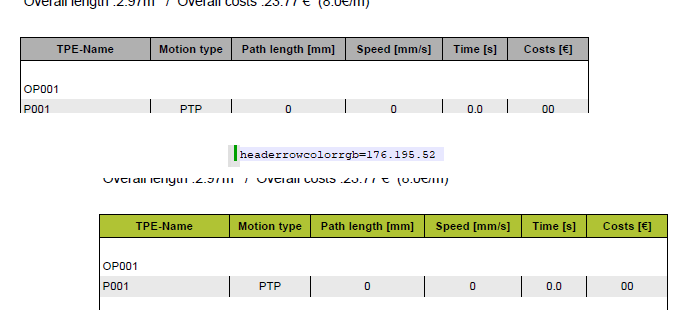

headerrowcolorrgb
|
|
This item sets the desired background colour of the table header row.
The item values are the RGB portions (0..255) separated by a point; i.e. xxx.yyy.zzz.
The default value is grey, RGB 176.176.176
|
|

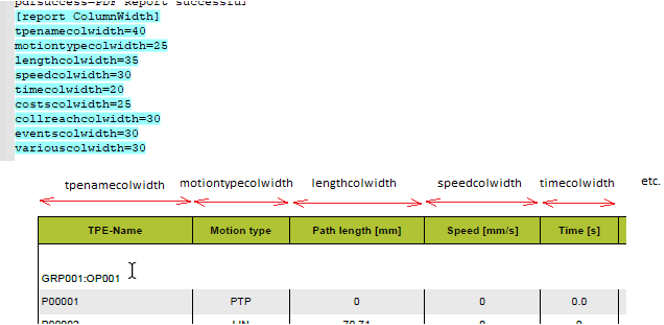

Column width
|
|
For each column its width can be specified by setting the value in the *.lng file.
Naming convention is: [columnName]colwidth
|
|
