Overview

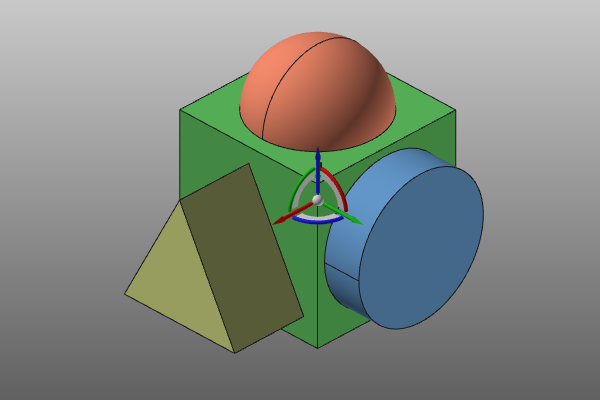

3D Clipping is the option to cut the 3D geometry at a main plane of the Manipulator and have only one side of that geometry visualized. This enables to even look inside a complex structure for details that from a standard camera view point are hidden for the user.
On the Pie menu of the Manipulator the command appears.
|
|

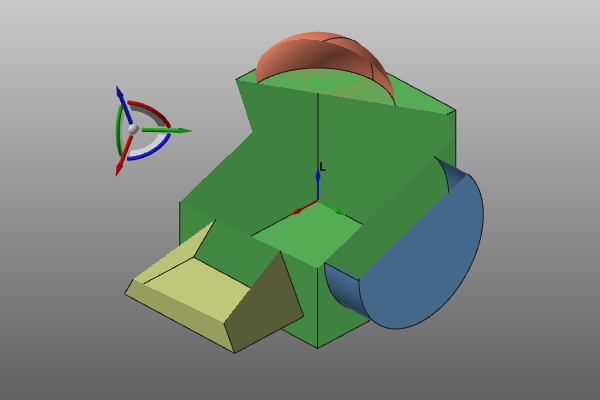

The Swap all clipping planes command creates a cutting box from the three main planes of the Manipulator. The box will cut the geometry in the 3D View. The other (negative) side remains shown.
|
|
|
|
|
The clipping is linked to the Manipulator. That implies that while moving the Manipulator when the clipping is active, the cutting result on the geometry dynamically changes.
|
|
Applying the command for a second time will de-activate the clipping planes and results in a normal 3D view of the geometry.
|
|
