Building a simple laser cutting project

Build the workpiece

Next  Previous  Chapter  Next



Purpose


FASTSUITE Edition 2 distinguishes between the workpiece and the fixture resource. The workpiece will be built from an external file containing the part geometry.

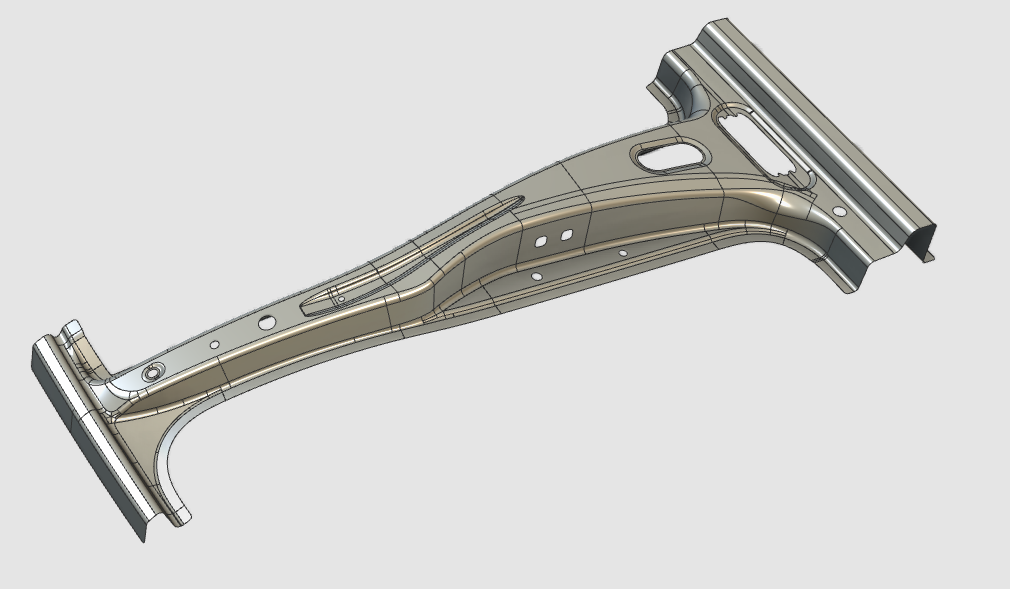

lasercut_build1_workpiece

The specific workpiece document will be generated. Geometry from the external file will be imported to give shape to the part. Then dedicated information is assigned to be able to start any offline programming at later stage of the project. And finally the workpiece is completed in such way that it can be easily loaded and handled in a fixture and workcell layout where it is going to be processed.



Steps


1

Preparation

1.1

Workbench_WPC_40

Switch to the Workpiece Preparation workbench.

SimToClose

1.2

DocNew

Create a new, empty document.



If another document is already open in the running session, this step has to be executed. If not, this step can be skipped

SimToClose


2

Define the workpiece

2.1

SettingsGlobal

Verify the Settings for importing geometry.

To use the workpiece properly in offline programming it is mandatory to import the geometry as exact geometry.

SimToClose

2.2

Import

Import the geometry from the file B_Pillar.stp, which is located on the installation drive of this manual.

SimClose

2.3

Wpc_Create

Create a new workpiece for the imported geometry.

SimToClose

2.4

Wpc_Create

Give the workpiece an appropriate name.

SimToClose


3

Build the workpiece shape

3.1

COM_Atach

Attach the imported geometry to the workpiece.

SimToClose


4

Save the workpiece

4.1

SaveAs

Start the Save workpiece command. Then select your desired path to store the workpiece. By default, the name of the workpiece will be taken.


5

Alternative smart step to build the workpiece

Paragraph 2 and 3 are to learn how to build a workpiece from scratch in the individual steps. For more convenience, these steps are collected and executed in a single operation. This is shown below.

In case this automated creation of the workpiece fails at some point, due to any reason, the steps of paragraph 2 and 3 can be applied to manually build the workpiece.

5.1

Import

While dropping the step file (directly from the file explorer) into the new document, press and hold the W-key.

Verify that the part has been created and the geometry has been attached automatically.



Do not forget to save the workpiece. Go to the File manager and right click the workpiece item in the graphics to start the Save command. Then select your desired path to store the workpiece.


Information_24

Be sure to save your data frequently.
